Aluminum Form Ties

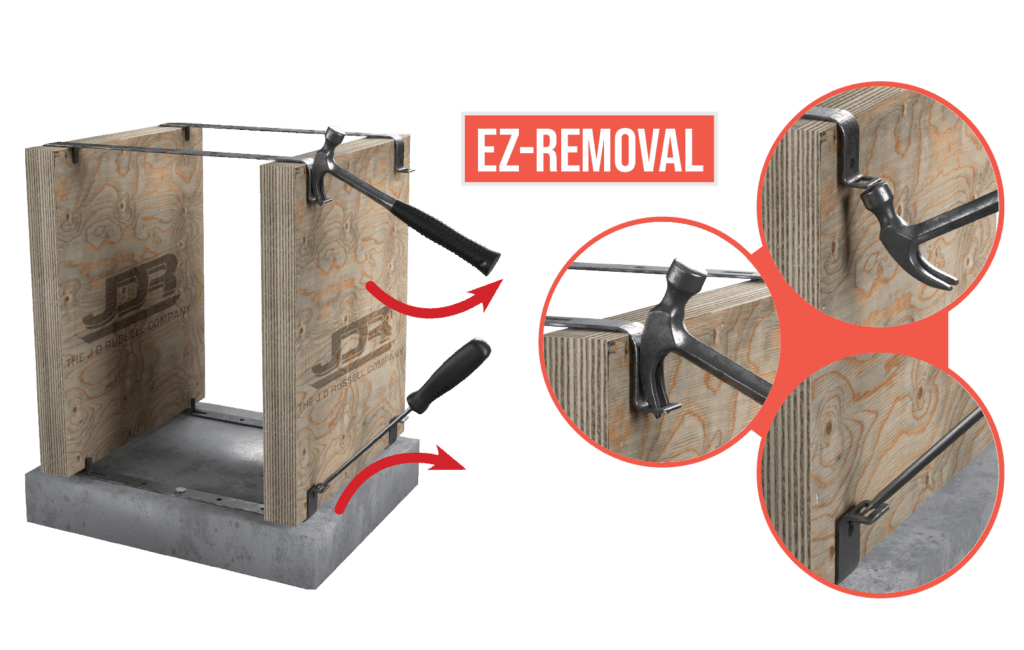

The J D Russell Company’s Patented EZ-Strip Form Clip features a patented tool-receiving slot to simplify the task of removing the clip after the pour. Apply upward pressure with a hammer claw, pry bar, or screw driver to manipulate and create movement to more easily break the bond. Your crew will strip forms quicker, more efficiently and with little or no damage to the clips and your costly form panels.
Various widths available for panel thicknesses of 3/4″ and 1-1/8″
U. S. Patent No. 10,961,727
| W-Wall Thickness | P-Panel Thickness | Clips Per Box | Boxes per Pallet |
Box Weight (100 clips) |
| 5-5/8″ | 1-1/8″ | 100 | 78 | 39.5 lbs |
| 6″ | 1-1/8″ | 100 | 78 | 41 lbs |
| 7-5/8″ | 1-1/8″ | 100 | 66 | 47.3 lbs |
| 8″ | 1-1/8″ | 100 | 66 | 49 lbs |
| 9″ | 1-1/8″ | 100 | 60 | 52 lbs |
| 9-5/8″ | 1-1/8″ | 100 | 54 | 55.2 lbs |
| 10″ | 1-1/8″ | 100 | 54 | 58 lbs |
| 11-5/8″ | 1-1/8″ | 100 | 48 | 66 lbs |
| 12″ | 1-1/8″ | 100 | 48 | 68 lbs |
| 14″ | 1-1/8″ | 50 | 21 | 75 lbs |
| 16″ | 1-1/8″ | 50 | 21 | 88 lbs |
| 18″ | 1-1/8″ | 50 | 18 | 100 lbs |
| 24″ | 1-1/8″ | 50 | 15 | 136 lbs |
| 6″ | 3/4″ | 100 | 78 | 38.5 lbs |
| 8″ | 3/4″ | 100 | 66 | 46 lbs |
| 10″ | 3/4″ | 100 | 54 | 54 lbs |
Various widths available for panel thicknesses of 3/4″ and 1-1/8″
With conventional form clips, once the concrete enters the form, pressure is applied outwardly, locking the form clips in place. Removal of the clips requires a claw hammer or pry bar to be inserted between the clip and the wood form. The removal process causes gouging and chipping over time, shortening the life span of expensive form boards as well as increasing the amount of time it takes to strip the forms. The J D Russell Company’s EZ-Strip Form Clip features a patented* tool-receiving slot to simplify the task of removing the clip after the pour. Apply upward pressure with a hammer claw, pry bar, or screw driver to manipulate and create movement to more easily break the bond. Your crew will strip forms quicker, more efficiently and with little or no damage to the clips and your costly form panels.
The problem with Conventional form clips
A new solution to an old problem
* Patent pending
