Standard Form Clips

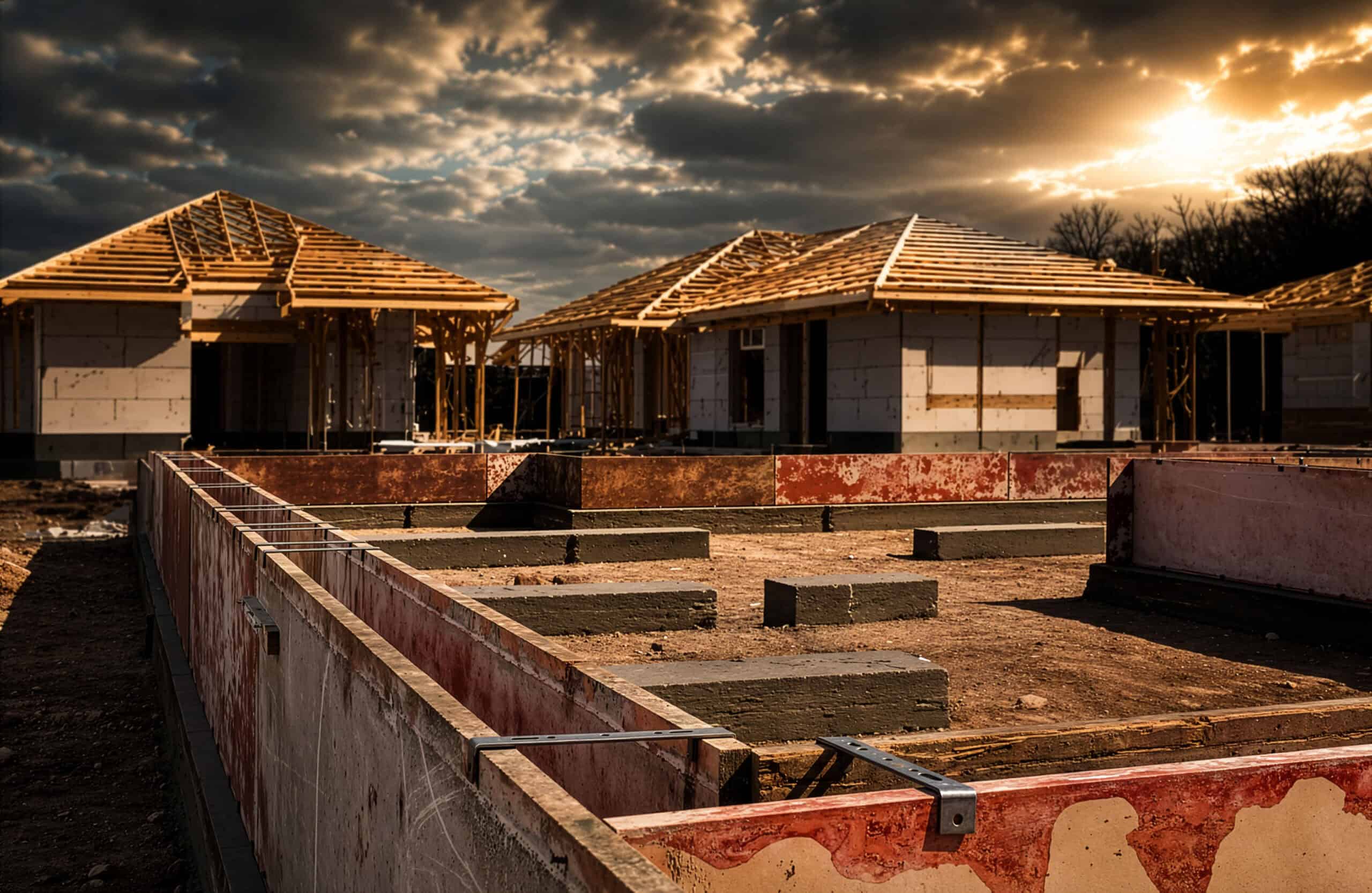

JD Russell Form Clips are readily used with HDO plywood to form stem walls, cast-in-place walls and basement walls. Foundations and wall thicknesses can vary with accuracy when using this system.
Various widths available for panel thicknesses of 3/4″ and 1-1/8″
Related Products
Need a Product Quote?
PRODUCT SPECIFICATIONS
PALLET SIZES
| W-Wall Thickness | P-Panel Thickness | Clips Per Box | Boxes per Pallet |
Box Weight (100 clips) |
| 5-5/8″ | 1-1/8″ | 100 | 78 | 39.5 lbs |
| 6″ | 1-1/8″ | 100 | 78 | 41 lbs |
| 7-5/8″ | 1-1/8″ | 100 | 66 | 47.3 lbs |
| 8″ | 1-1/8″ | 100 | 66 | 49 lbs |
| 9″ | 1-1/8″ | 100 | 60 | 52 lbs |
| 9-5/8″ | 1-1/8″ | 100 | 54 | 55.2 lbs |
| 10″ | 1-1/8″ | 100 | 54 | 58 lbs |
| 11-5/8″ | 1-1/8″ | 100 | 48 | 66 lbs |
| 12″ | 1-1/8″ | 100 | 48 | 68 lbs |
| 14″ | 1-1/8″ | 50 | 21 | 75 lbs |
| 16″ | 1-1/8″ | 50 | 21 | 88 lbs |
| 18″ | 1-1/8″ | 50 | 18 | 100 lbs |
| 24″ | 1-1/8″ | 50 | 15 | 136 lbs |
| 6″ | 3/4″ | 100 | 78 | 38.5 lbs |
| 8″ | 3/4″ | 100 | 66 | 46 lbs |
| 10″ | 3/4″ | 100 | 54 | 54 lbs |
PRODUCT DOCUMENTS
ADDITIONAL INFO
Various widths available for panel thicknesses of 3/4″ and 1-1/8″
