(800) 888-7425​

  • Homepage
  • >>
  • Construction Products
  • >>
  • Duradowel Strip
  • Duradowel Flyer
  • Duradowel Spec Sheet

Available Dimensions

  • 1/4” (6 mm) – Typically used in 5”–6” slab depths (127mm–152mm)
  • 3/8” (10 mm) – Typically used in 7”–8” slab depths (178mm–203mm)
  • 3/4” (20 mm) – Typically used in 9”+ slab depths (229mm+)

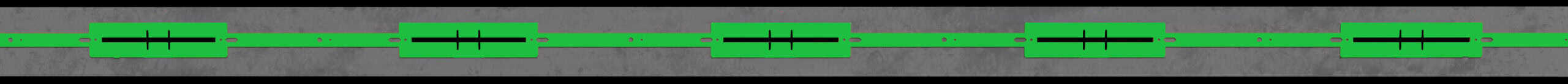

Common Strip Configurations

  • 12” On Center Spacing
  • 15” On Center Spacing
  • 18” On Center Spacing

Standard Strip Lengths

  • 24”
  • 36”
  • 48”

Need a Product Quote?

Request Info

Related Products

Dura Dowel System

Reflex Tear Tab

Reflex Color Rubber Expansion Joint

Aluminum Form Ties

Impalement Caps

Impalement Caps

features a patented tool-receiving slot to simplify the task of removing the clip after the pour.

EZ-Strip Form Clips

Smooth Concrete Dowels

Rebar Isolators

x-flats

X-Flat Ties

Flat Stacking Ties

Flat Stacking Ties & Wedges

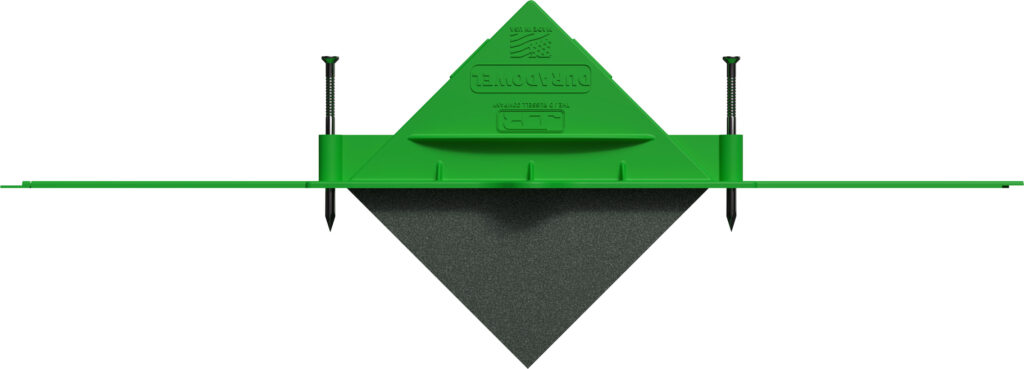

Dura Dowel Strip Pocket Forming System

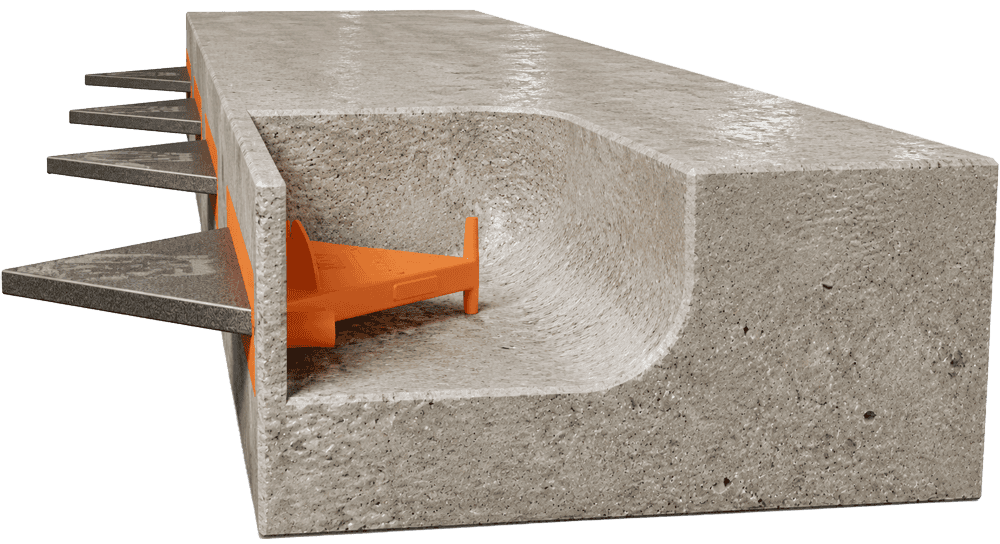

DURA DOWEL Strip is an efficient pocket-forming system designed to simplify dowel placement in concrete construction. Manufactured in pre-molded strips, DURA DOWEL Strip allows contractors to install multiple dowel pockets at once, dramatically reducing installation time while improving consistency and alignment across expansion and construction joints.

Unlike traditional individually placed dowel systems, DURA DOWEL Strip streamlines the forming process by integrating multiple pockets into a single strip, helping crews work faster while maintaining accurate dowel spacing. The system is designed to accommodate slab movement while allowing proper load transfer between concrete sections, helping reduce cracking, joint failure, and uneven slab movement over time.

Ideal for sidewalks, industrial floors, highways, warehouse slabs, parking structures, and commercial concrete applications, DURA DOWEL Strip delivers the durability and performance expected in demanding concrete environments.

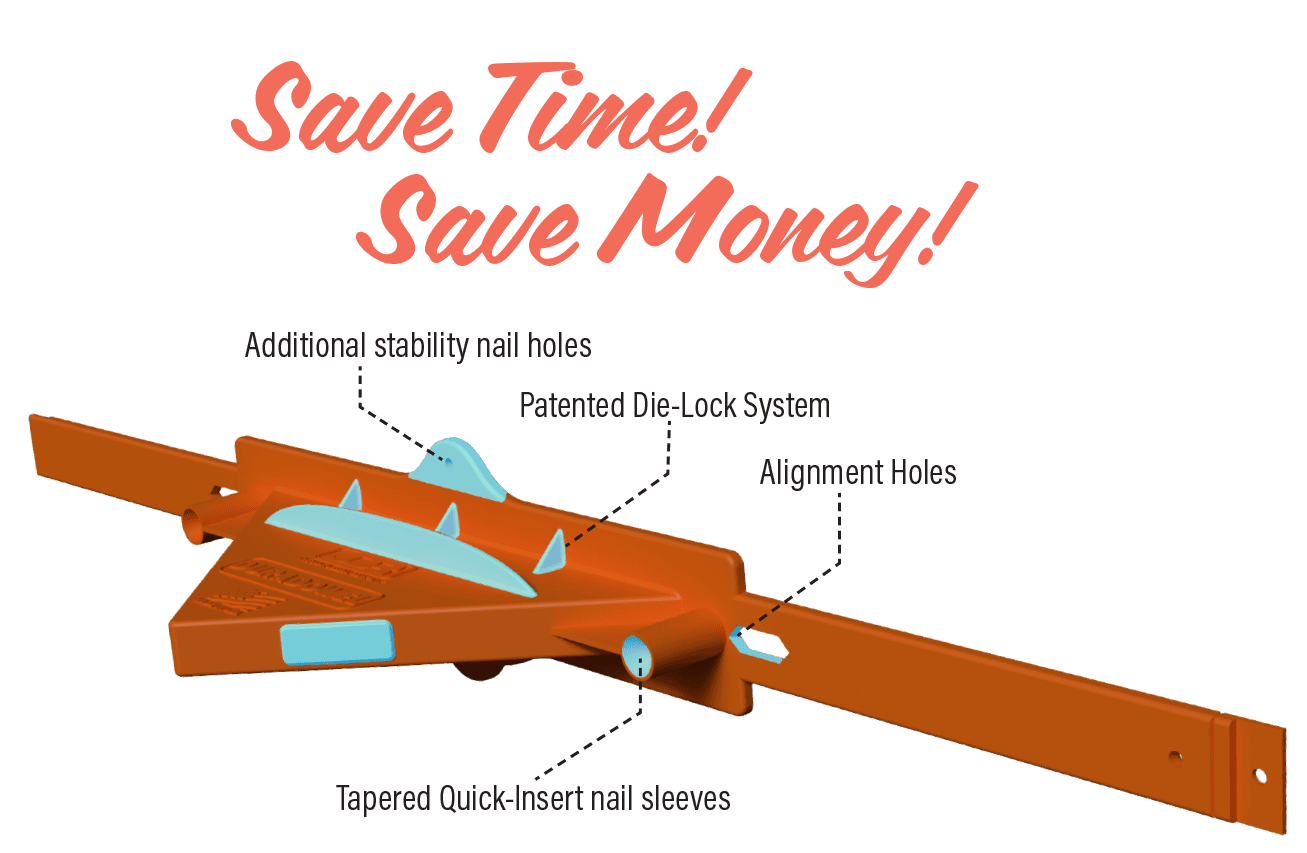

The DURA DOWEL Difference

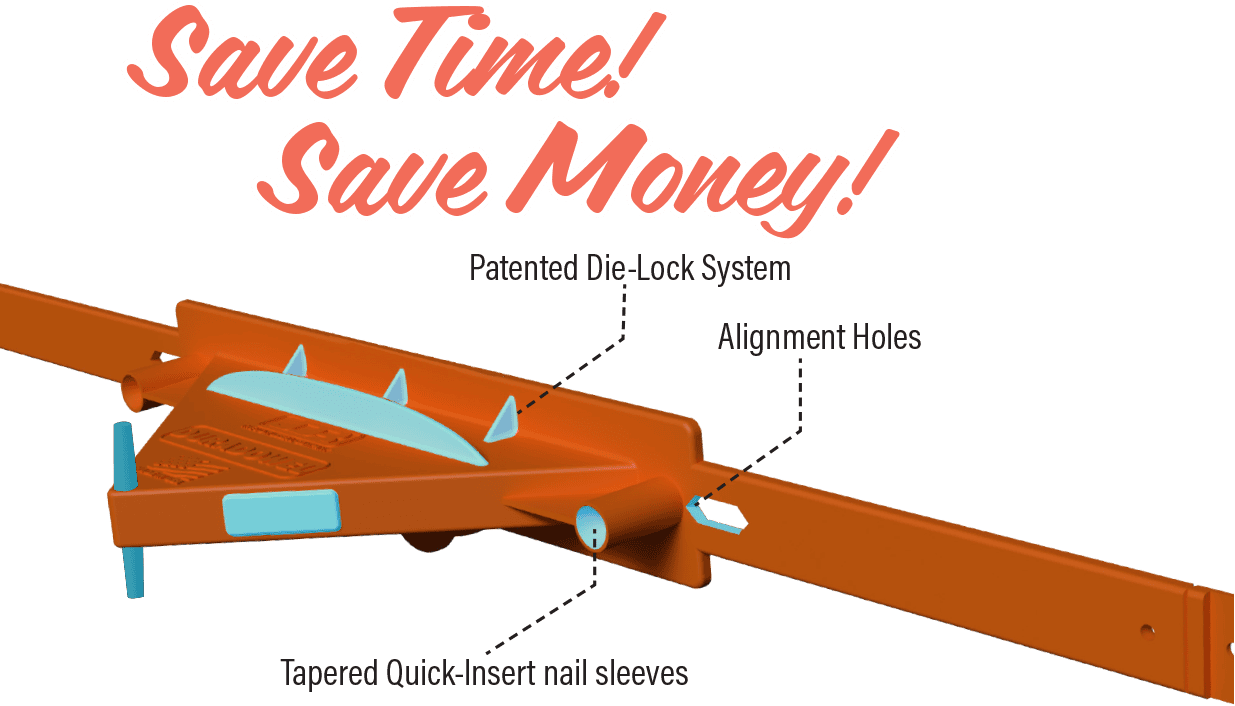

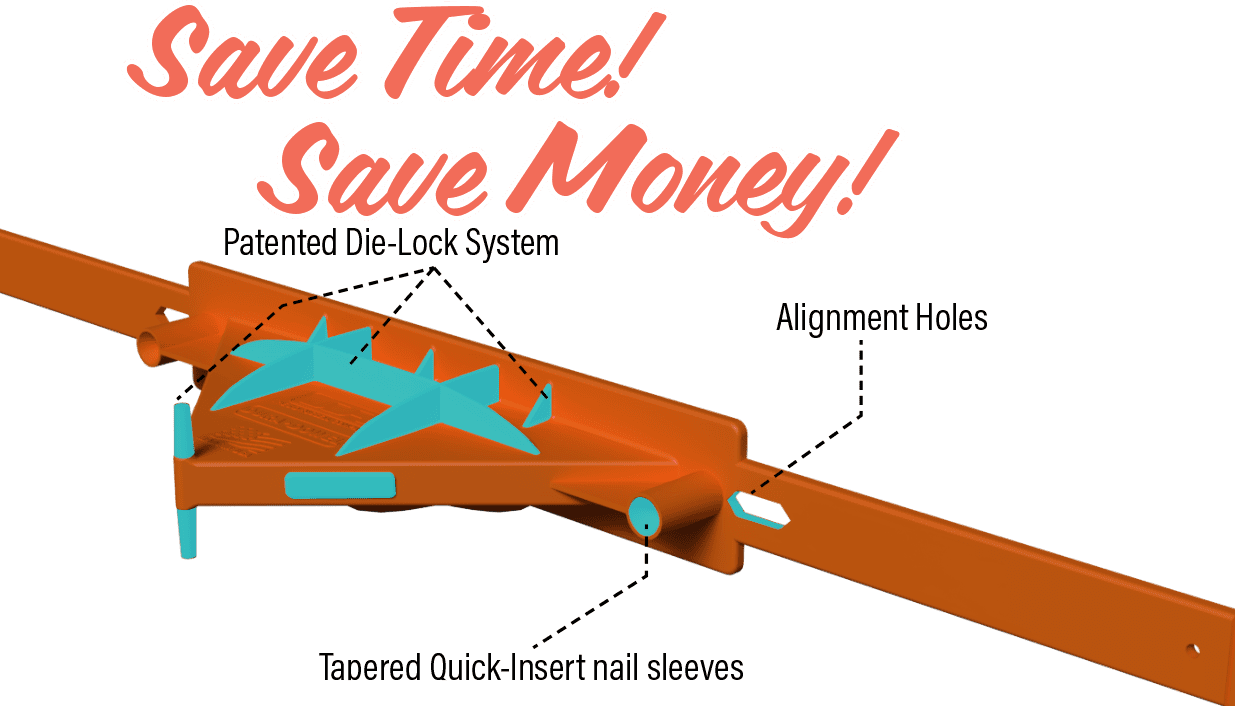

  • Pre-molded strip design for faster installation
  • Forms multiple dowel pockets simultaneously
  • Improves dowel alignment and spacing consistency
  • Helps reduce installation labor and layout time
  • Supports proper load transfer between slabs
  • Designed for expansion and construction joints
  • Durable, jobsite-ready construction
  • Proudly manufactured in the USA





DURA DOWEL Strip is an efficient pocket-forming system designed to simplify dowel placement in concrete construction. Manufactured in pre-molded strips, DURA DOWEL Strip allows contractors to install multiple dowel pockets at once, dramatically reducing installation time while improving consistency and alignment across expansion and construction joints.

Unlike traditional individually placed dowel systems, DURA DOWEL Strip streamlines the forming process by integrating multiple pockets into a single strip, helping crews work faster while maintaining accurate dowel spacing. The system is designed to accommodate slab movement while allowing proper load transfer between concrete sections, helping reduce cracking, joint failure, and uneven slab movement over time.

Ideal for sidewalks, industrial floors, highways, warehouse slabs, parking structures, and commercial concrete applications, DURA DOWEL Strip delivers the durability and performance expected in demanding concrete environments.

The DURA DOWEL Difference

  • Pre-molded strip design for faster installation
  • Forms multiple dowel pockets simultaneously
  • Improves dowel alignment and spacing consistency
  • Helps reduce installation labor and layout time
  • Supports proper load transfer between slabs
  • Designed for expansion and construction joints
  • Durable, jobsite-ready construction
  • Proudly manufactured in the USA





IMG_5077-brad-v4
IMG_5225-Brad
IMG_5274-brad-V4
IMG_5306-brad-V4
Duradowel-Sidewalk

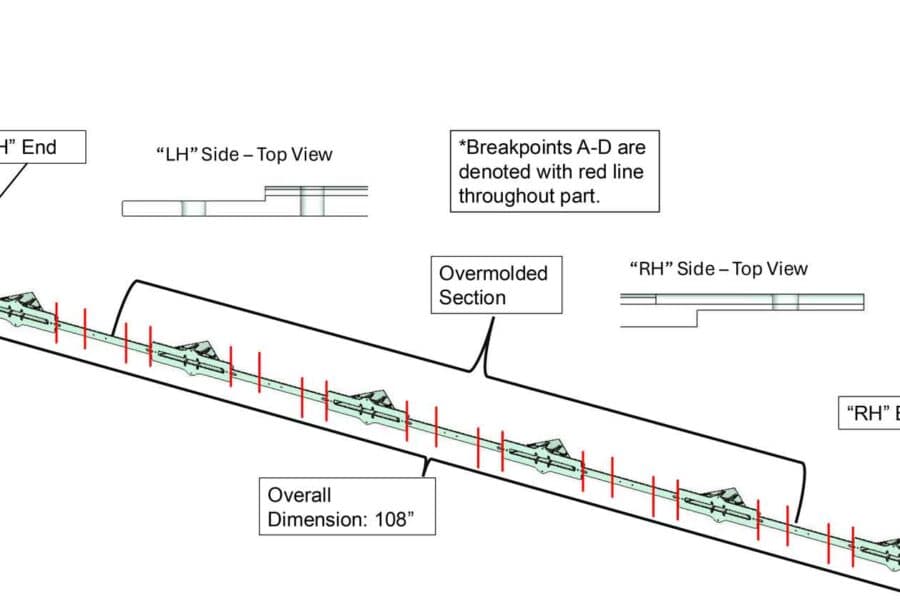

JDR-DuraDowel-Attachment-Feature-4

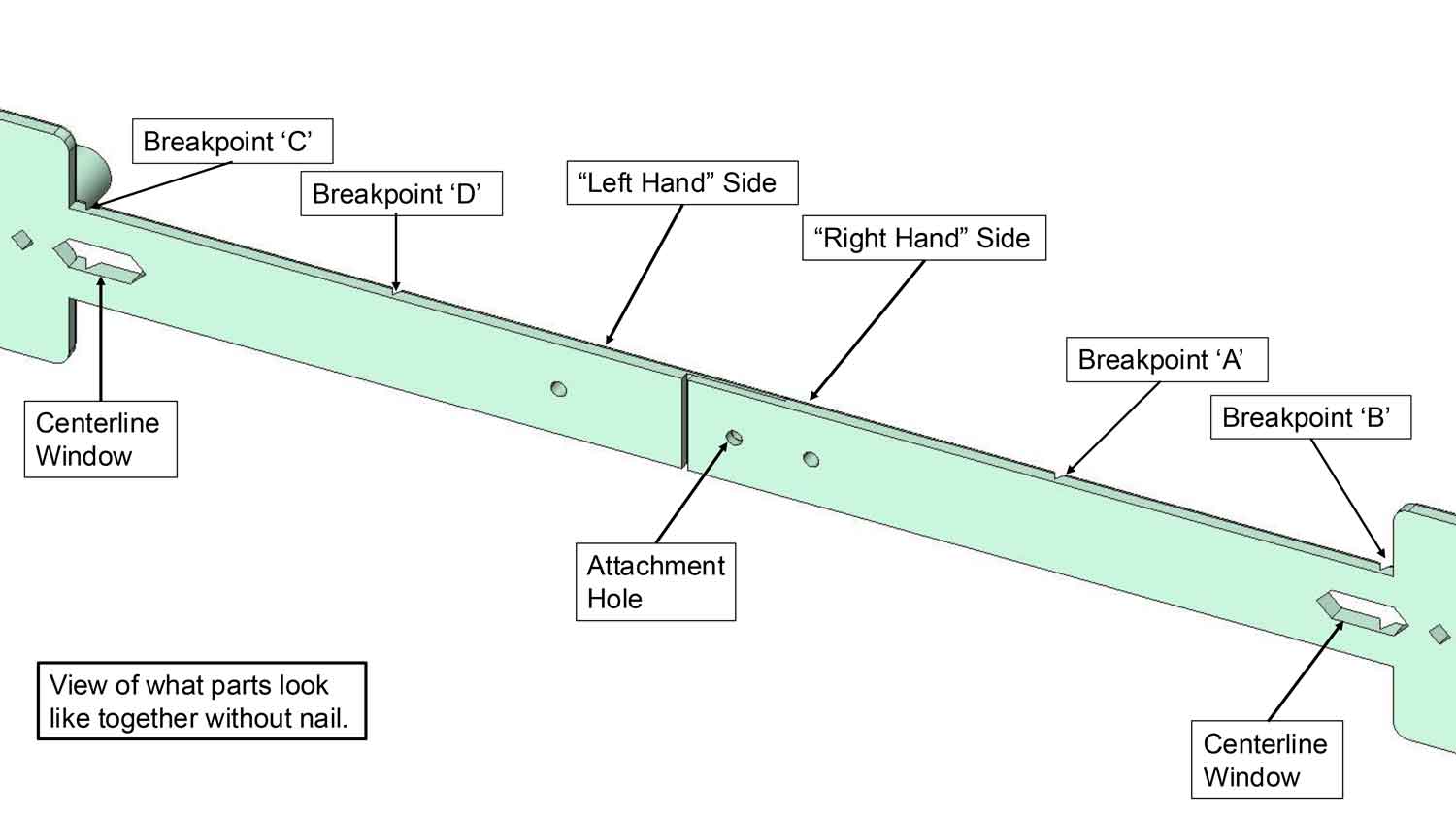

JDR-DuraDowel-Attachment-Feature-3

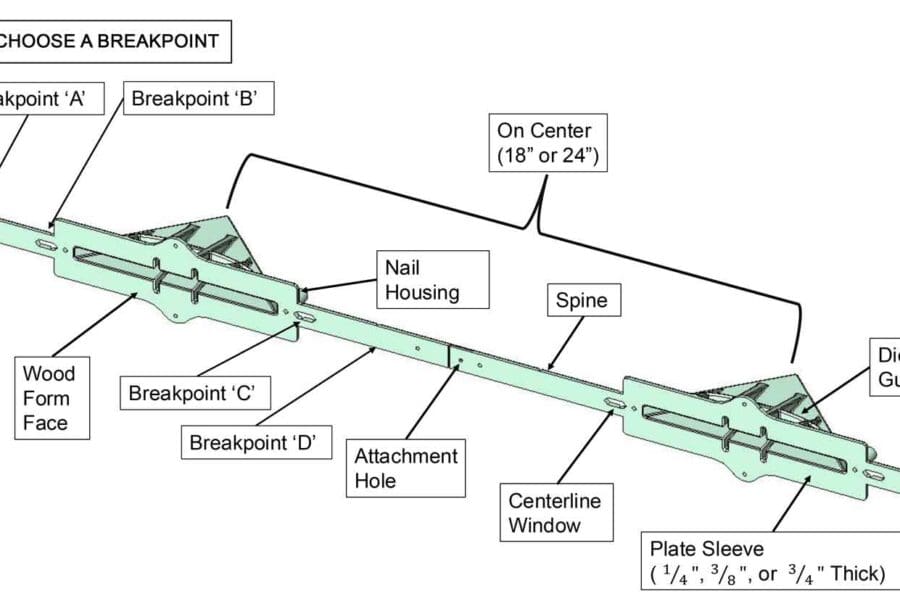

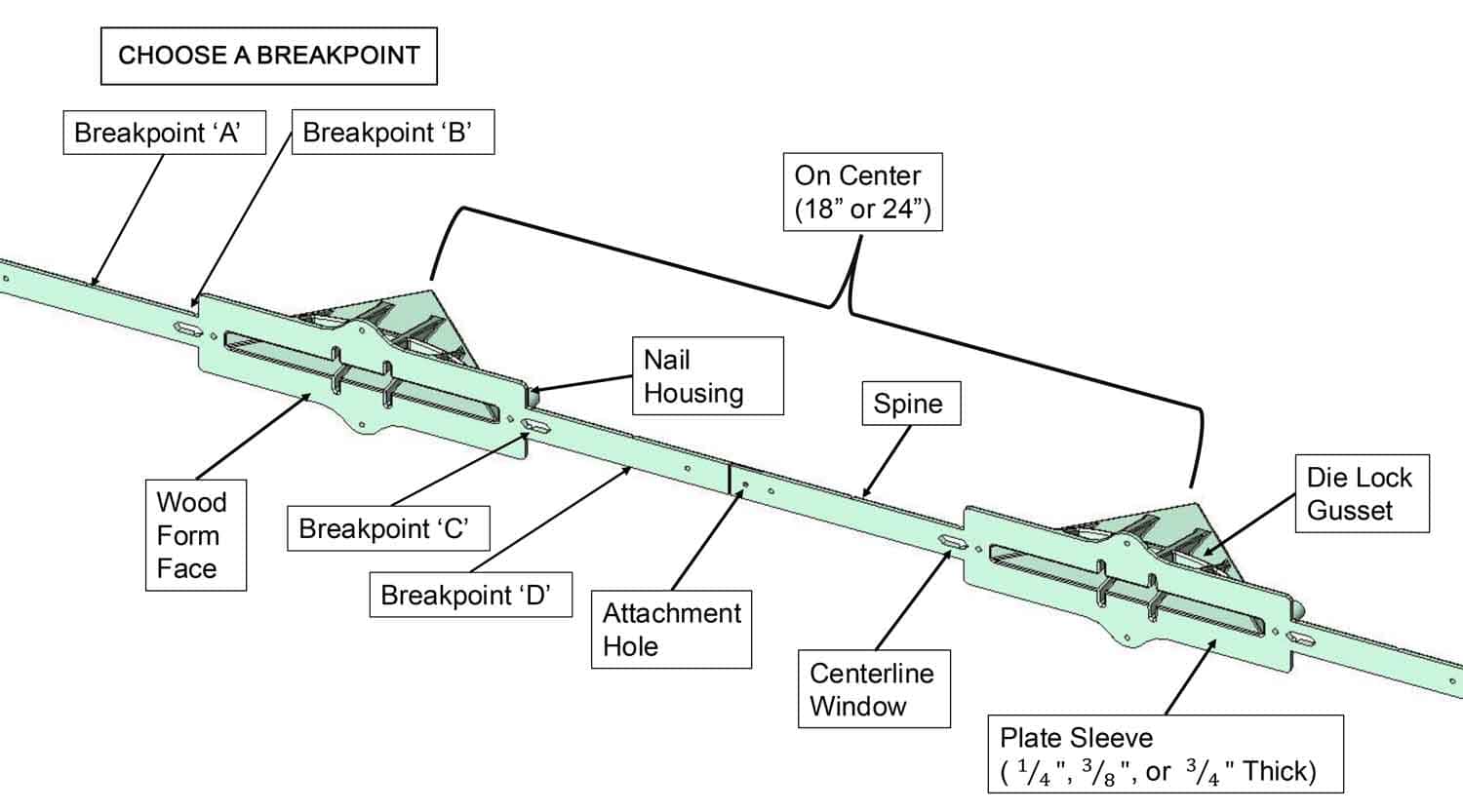

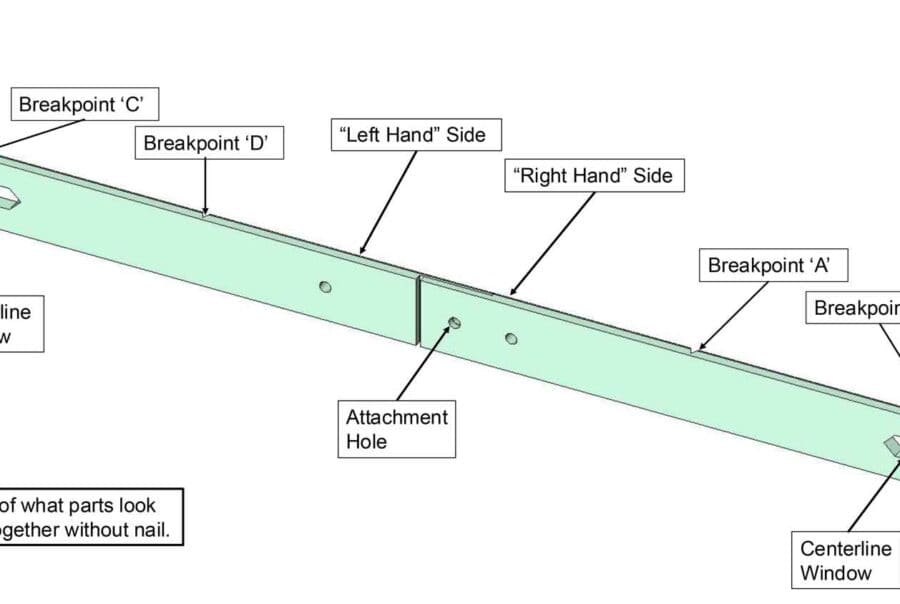

JDR-DuraDowel-Attachment-Feature-2

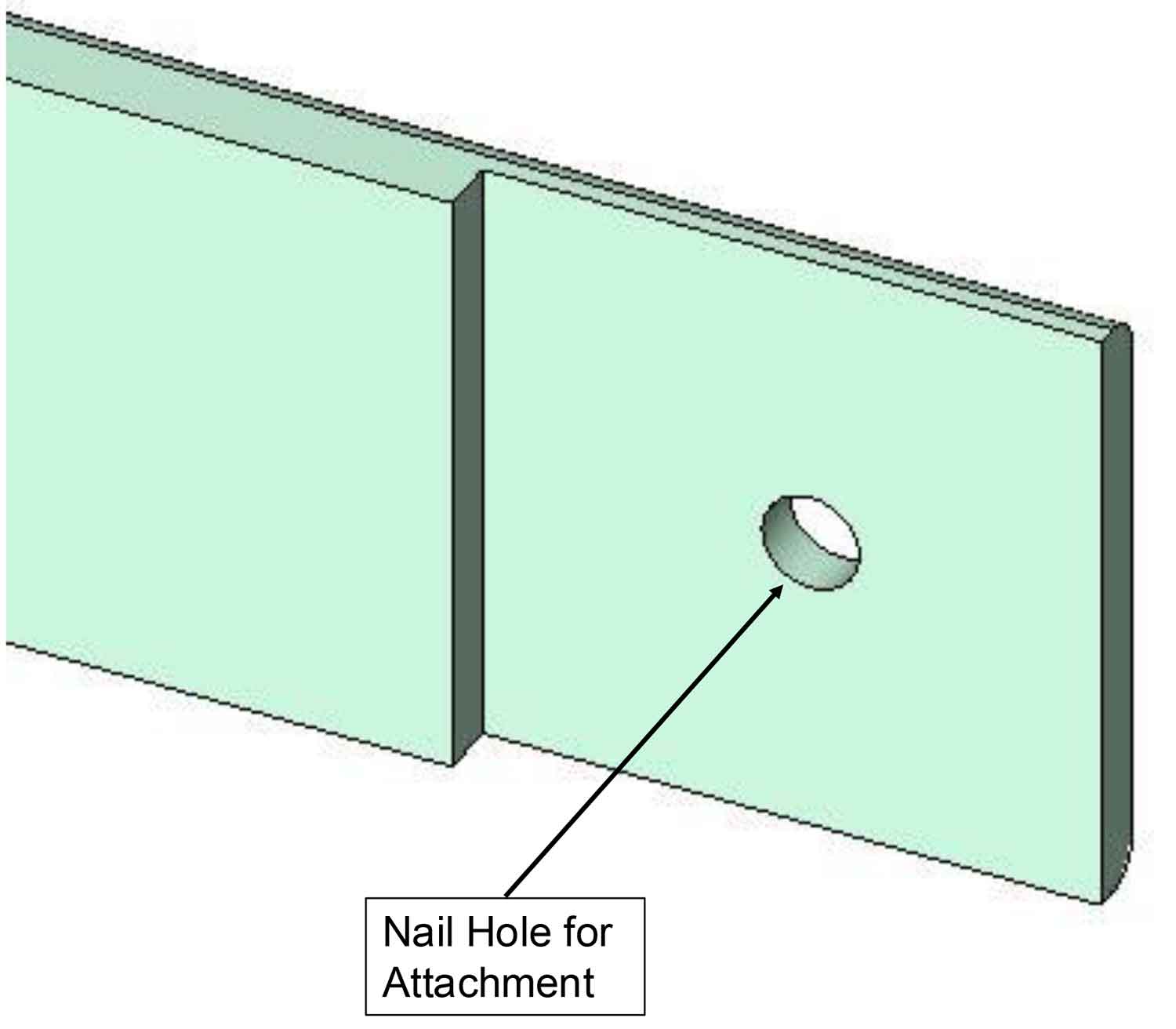

JDR-DuraDowel-Attachment-Feature-1
